Multi-ring Precision Potentiometer 20k Ohm 0.5W for Fine Tuning

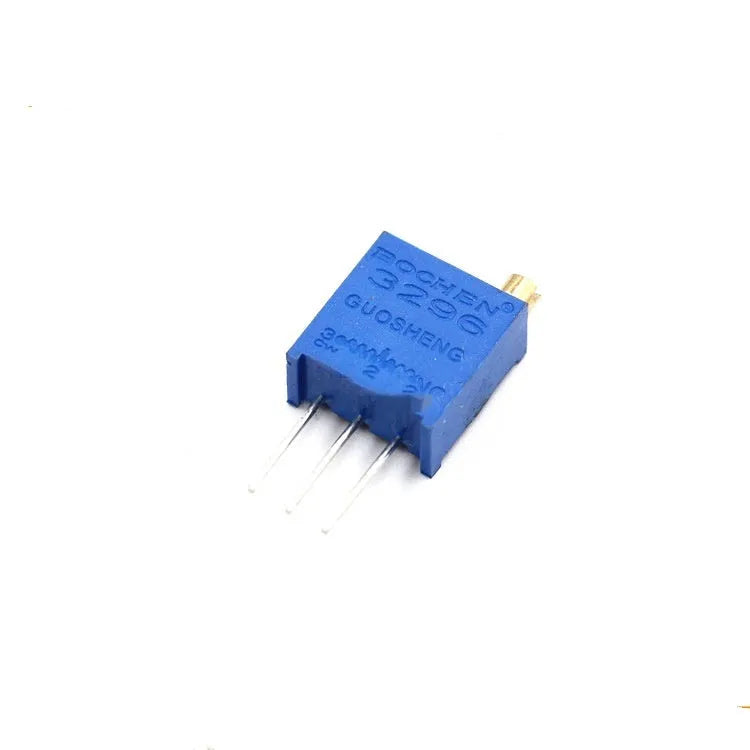

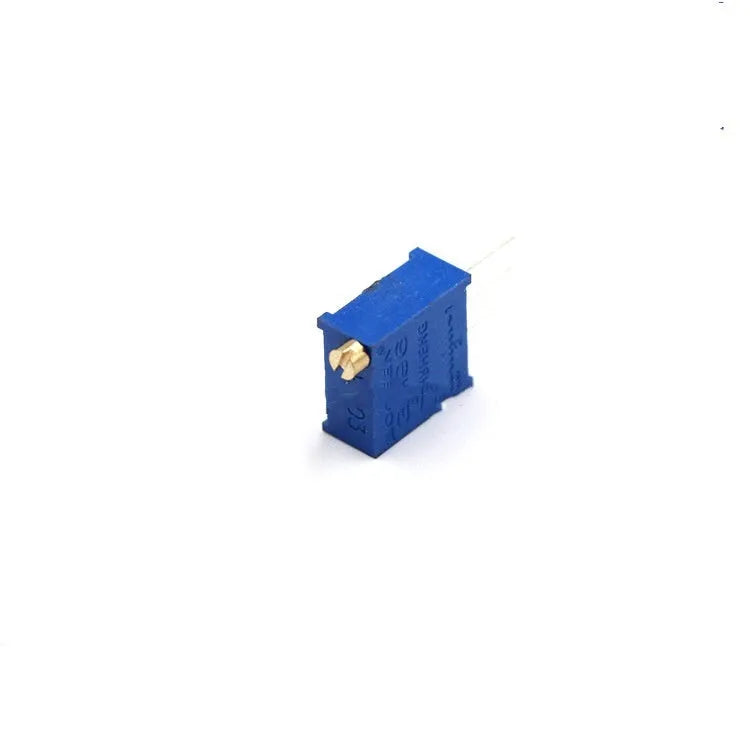

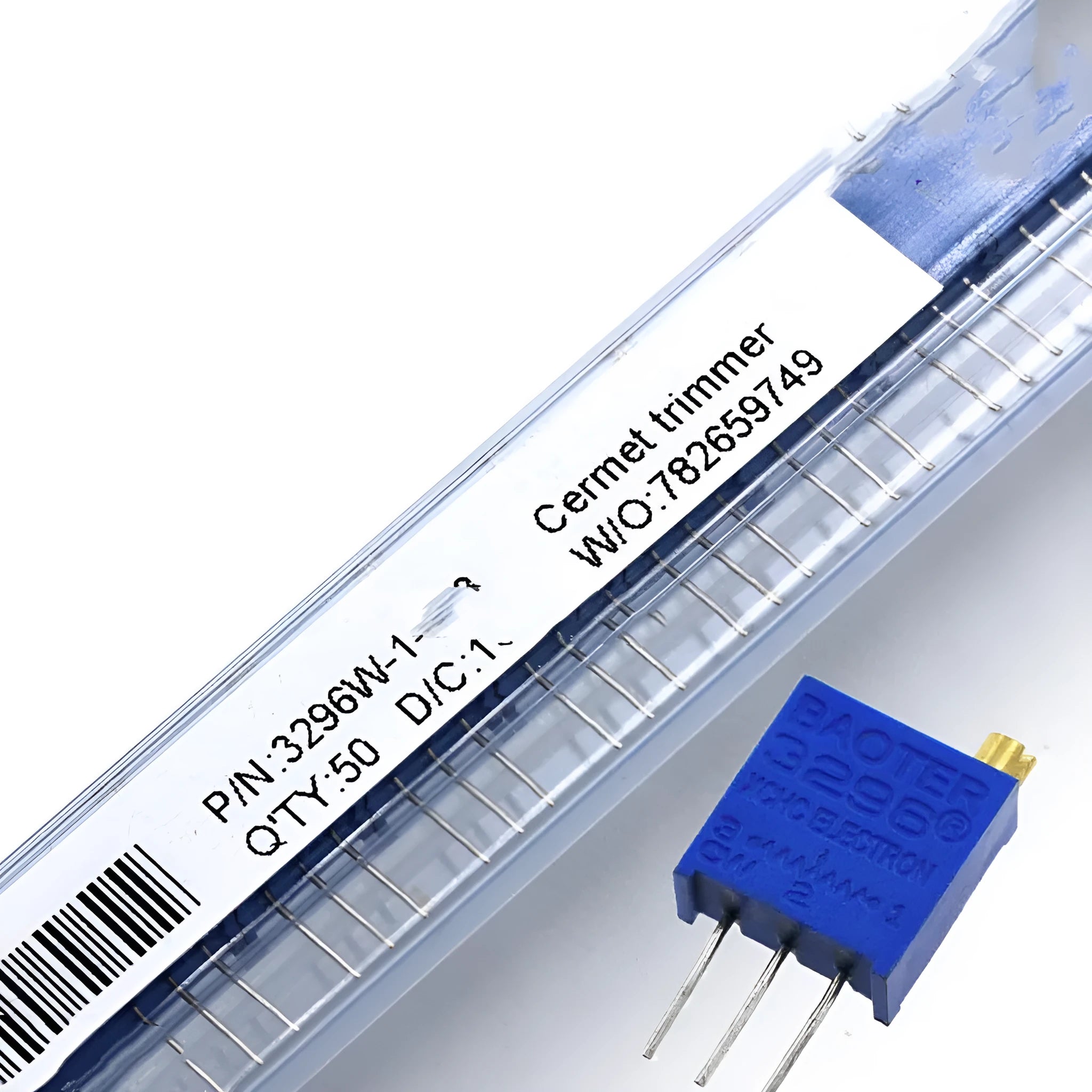

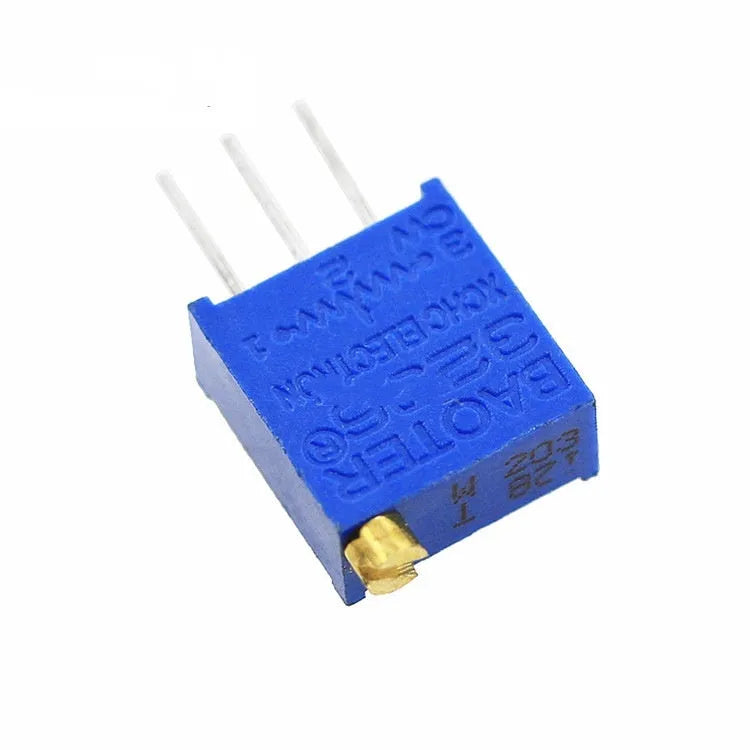

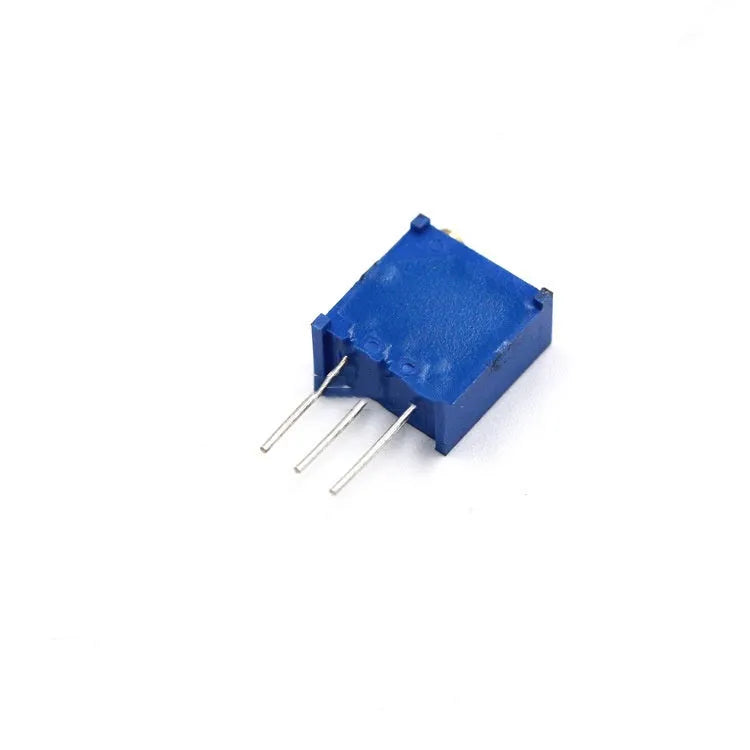

This multi-ring precision adjustable resistor potentiometer is designed for applications where accurate and repeatable resistance adjustment is essential. With a nominal resistance of 20k ohms and a rated power of 0.5W, it delivers reliable performance in calibration, testing, and prototyping setups. The X-type linear resistance change mode ensures that each turn of the adjuster produces a consistent change, making fine-tuning straightforward. Constructed with a glass glaze film element, this potentiometer offers stable electrical characteristics suitable for professional electronic work.
Features and Construction
The potentiometer combines precise mechanical adjustment with robust internal materials for dependable operation over time. Its multi-ring design allows for multiple turns to cover the full resistance range, enabling very small incremental changes.
Material and Build
The glass glaze film resistive element provides stable performance with minimal drift. The housing is durable enough for repeated adjustment cycles, and the contact resistance is rated at just 3 ohms, ensuring low signal loss.
Size and Practical Fit
While specific dimensions are not listed, the component is designed for standard PCB mounting or panel installation. The blue colour helps with visual identification in crowded assemblies.
Uses and Placement
This potentiometer is suited for any circuit requiring precise voltage division or current limiting. Its linear response is ideal for applications where the relationship between shaft position and resistance must be predictable.
Event or Professional Use
In laboratory settings, the multi-ring feature allows technicians to set exact resistance values for calibration standards or simulation circuits. The 100% resolution means the entire adjustment range is usable without dead spots.
Everyday Home Use
Hobbyists building audio equipment, power supplies, or test gear will appreciate the fine control this component offers. The 20k ohm value is common in many signal processing circuits.
Benefits and Buying Value
Choosing a precision potentiometer reduces trial and error during assembly and tuning. This component provides a straightforward way to achieve exact settings without swapping fixed resistors.
Reuse and Low Maintenance
The glass glaze film element is resistant to environmental factors like humidity and temperature variation, supporting long-term stability. A sealed construction helps prevent dust ingress.
Why Choose This Product
With a resistance tolerance of ±10% and a rated power of 0.5W, this potentiometer meets the needs of most precision adjustment tasks. The linear taper ensures smooth, predictable control throughout the full 20k ohm range.
