Electric Projector Hanger with 0.8 Metre Travel and 10 kg Load Capacity

This electric projector lifting hanger provides a professional solution for permanently mounting a projector overhead, eliminating the need for bulky floor stands or fixed ceiling mounts. Its key advantage is a motorised lifting mechanism that allows you to discreetly retract the projector when not in use or lower it for maintenance. The system is controlled via a wireless remote, offering convenience and a clean installation free from dangling control cords. Designed with an ultra-thin chassis, it minimises its presence in the room, making it a suitable choice for home cinemas, conference rooms, and lecture halls where both functionality and aesthetics are important.

Features and Construction

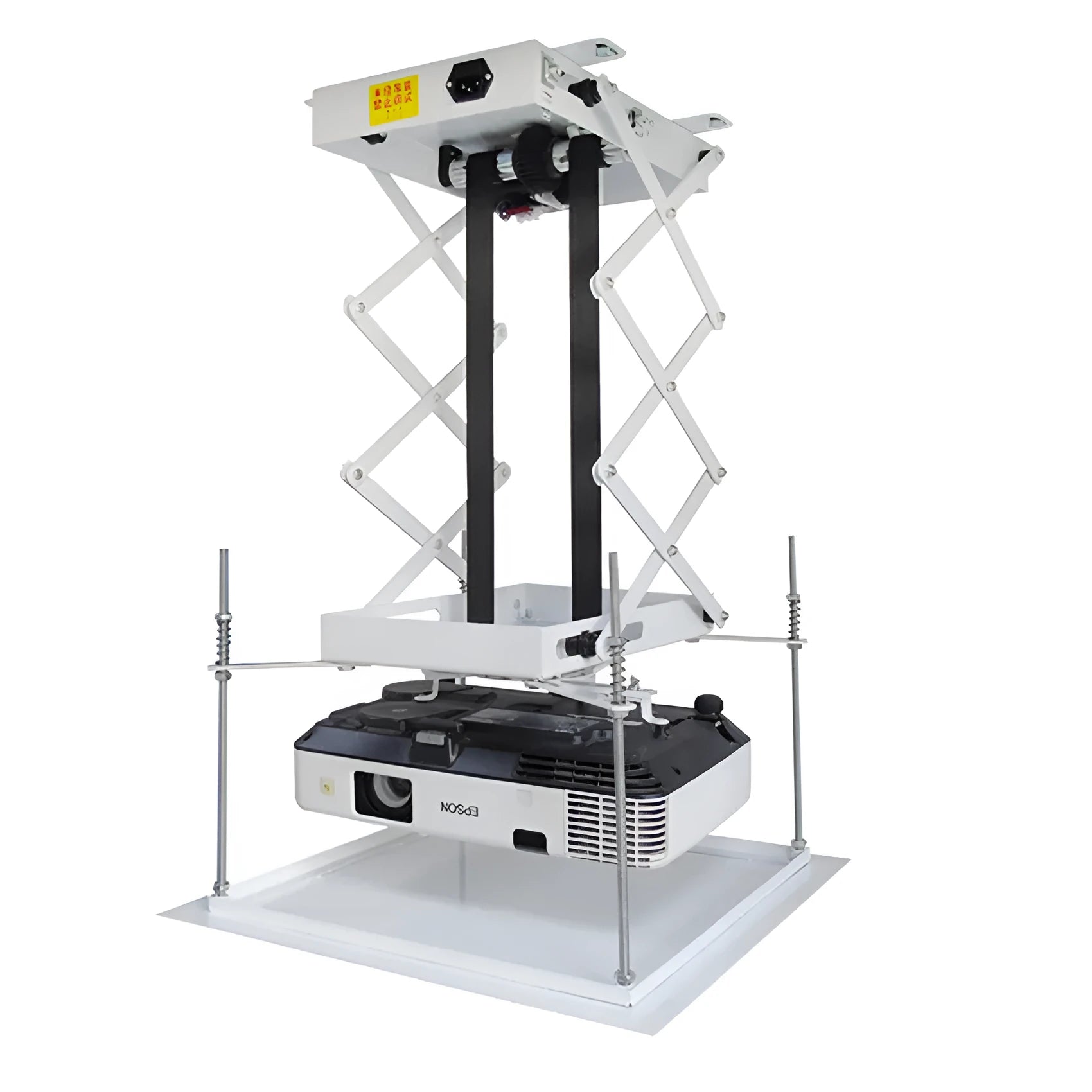

The hanger is engineered for reliable and repeated operation, centred on a robust lifting mechanism housed within a slim-profile chassis.

Material and Build

The construction is based on a metal chassis and lifting assembly, providing the necessary strength to safely support the rated load. The core of the system is a 48W synchronous motor, which delivers smooth and consistent lifting power. This motor is designed for standard UK mains voltage, operating at 220V and 50Hz. The build prioritises functional reliability for the lifting task over decorative finishes, resulting in a unit focused on performance and longevity in a fixed installation.

Size and Practical Fit

The chassis itself is only 10 cm in height, contributing to its 'ultra-thin' description and helping it blend into the ceiling line. The lifting claw adds a further 6 cm. When fully extended with a projector attached, the total unfolded length from the mounting point is 18 cm plus the height of your specific projector; a typical unit adding around 70 cm is used for reference. The bottom plate, which affixes to your ceiling, has an outer dimension of 48x48 cm and an inner clear space of 42x42 cm, with a recommended ceiling opening of 45x45 cm for installation.

Uses and Placement

This product is designed for scenarios where a projector needs to be deployed and stored in the same fixed location repeatedly, offering a combination of out-of-sight storage and easy access.

Event or Professional Use

In commercial or educational settings like conference rooms, training facilities, or university lecture theatres, this hanger allows the projector to be raised flush with the ceiling when the room is used for other purposes, protecting it from accidental damage. The wireless remote enables presenters or technicians to lower the projector to the exact desired height at the start of a session without needing a ladder, streamlining setup and improving safety.

Everyday Home Use

For a dedicated home cinema or media room, this hanger provides a high-end, integrated look. It allows the projector to be discreetly hidden away when not in use, maintaining a clean room aesthetic. The ability to lower the projector makes routine tasks like cleaning the lens, changing filters, or adjusting connections much simpler than with a fixed ceiling mount, adding practical value to the installation.

Benefits and Buying Value

The value of this system lies in its combination of secure mounting, adjustable positioning, and discreet design, which solves several common installation challenges.

Reuse and Low Maintenance

Once installed, the hanger is designed for years of reliable service. The mechanical limit provides a defined 0.8 metre travel range, ensuring consistent operation. The synchronous motor and robust construction are selected for this type of repeated lifting duty. Maintenance primarily involves ensuring the load limit is respected and keeping the mechanism free from dust and debris, contributing to a long service life with minimal ongoing cost.

Why Choose This Product

This electric hanger is a specific solution for users who require a motorised, adjustable mounting point for a projector weighing up to 10 kg. Its key differentiators are its 0.8 metre travel range, which offers greater adjustment than many fixed mounts, and its wireless remote control for ease of use. The 48x48 cm base plate and specified load capacity provide clear parameters for installation planning, giving you confidence in its suitability for your projector and space before purchase.
