Raspberry Pi 1.6 Inch LCD Display for Real-Time CPU Monitoring and System Data

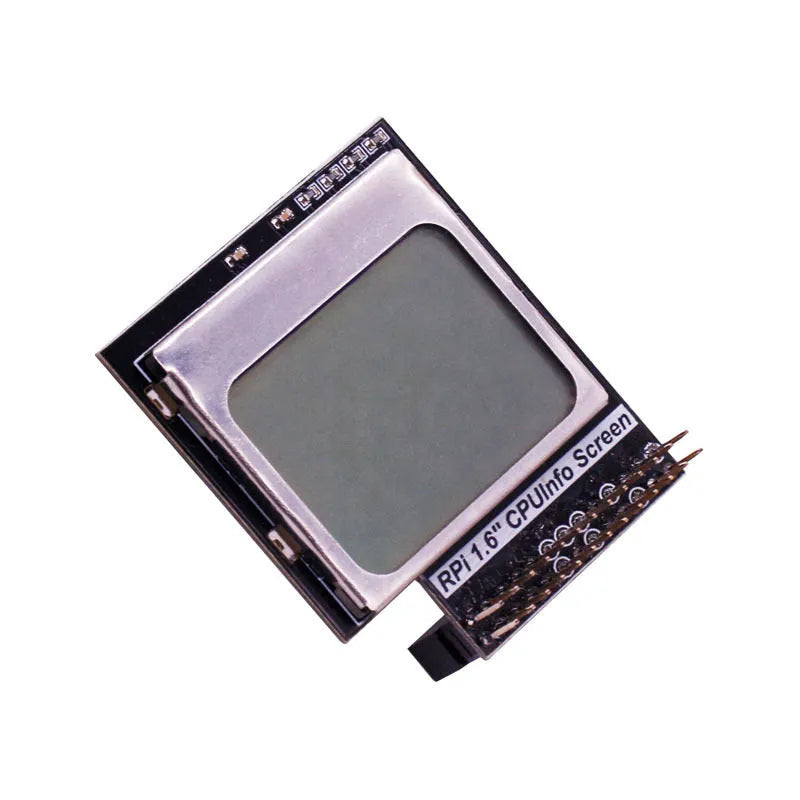

This 1.6-inch LCD display module provides a dedicated, space-saving solution for monitoring your Raspberry Pi's performance. By connecting directly to the GPIO pins, it offers a straightforward way to view CPU information and other system metrics without needing a full-sized monitor. The inclusion of a manual backlight switch gives you direct control over screen illumination, allowing you to reduce glare in low-light conditions or conserve power when detailed viewing isn't necessary. Designed with integration in mind, this crystal-clear display is ideal for smart home control panels, embedded systems, and DIY computing projects where a compact, reliable readout is essential.

Features and Build Quality of the 1.6-Inch Display

This section details the specific components and construction of the LCD module, explaining how its design supports reliable performance in embedded applications. We'll cover the display technology, the GPIO interface, and the practical benefits of the manual backlight control.

Compact LCD Screen Design

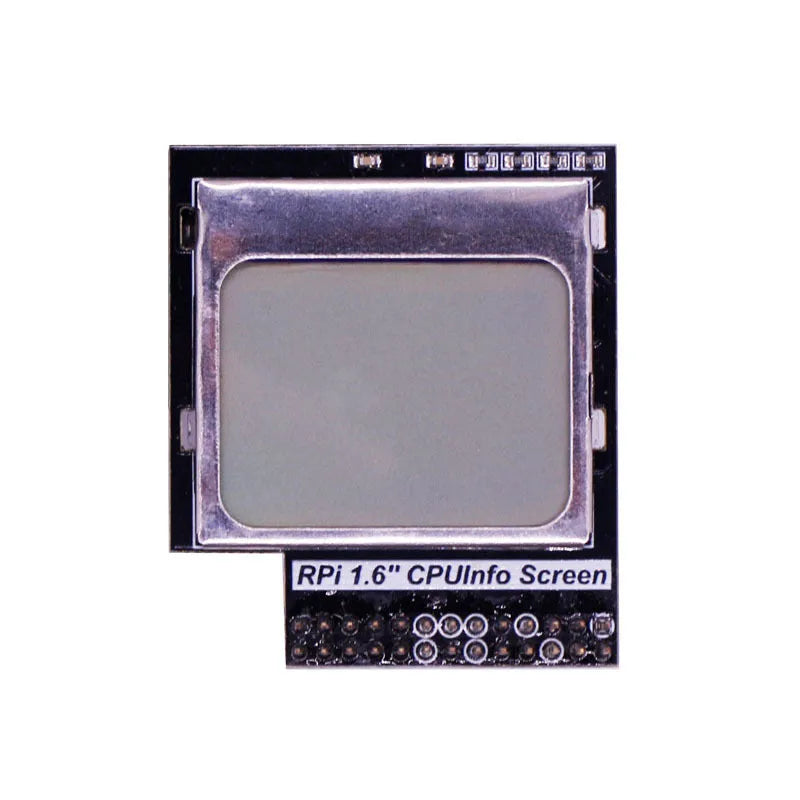

The core of this module is a 1.6-inch diagonal LCD screen utilising crystal display technology. This specific screen size provides sufficient space for displaying multiple lines of system data, such as CPU load, temperature, and memory usage, while remaining small enough for integration into compact enclosures. The display is designed to present text and basic graphics with clarity, ensuring metrics are legible from a typical working distance of an arm's length. Its form factor is dictated by the need to fit alongside a Raspberry Pi board within a custom case or mounted panel.

GPIO Connection and System Integration

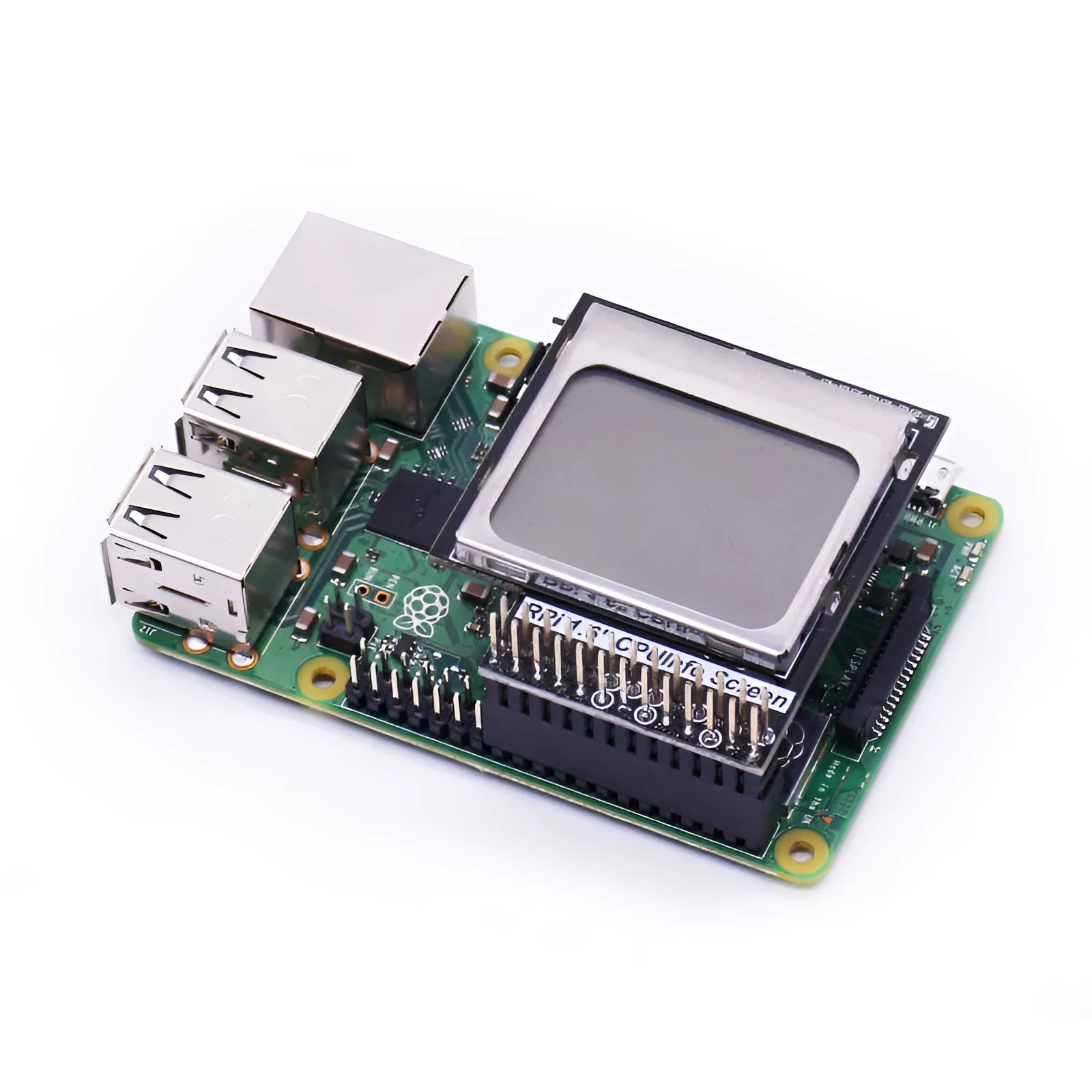

The display connects directly to the 40-pin GPIO header found on most modern Raspberry Pi boards. This interface provides both power and data communication, eliminating the need for a separate driver board or complex soldering for basic functionality. The connection allows the Raspberry Pi to send system information directly to the display for real-time monitoring. Setup typically involves securing the connector to the correct pins and may require enabling the display through the Raspberry Pi OS configuration software, depending on the intended use case and data to be shown.

Manual Backlight Control Switch

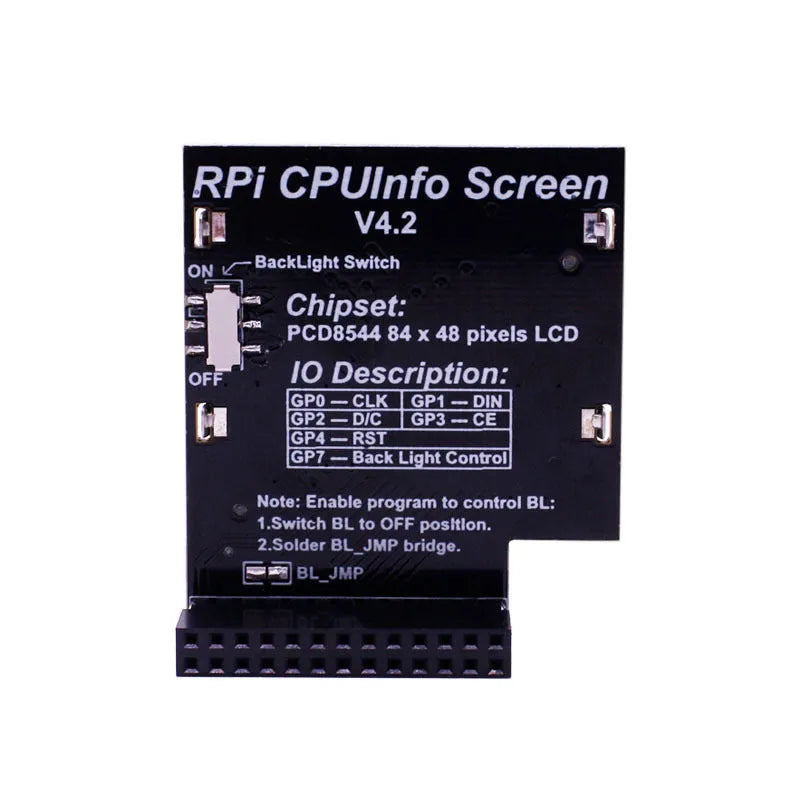

A key feature is the integrated physical switch for the screen's backlight. This allows the user to manually turn the illumination on or off. When the backlight is off, the display may still be visible under strong ambient light, but the switch provides a definitive way to reduce power consumption when the display is not actively being monitored. It also serves to minimise light pollution or glare in dark environments, such as a home theatre cabinet or a bedside smart home controller, improving the user experience by letting you control when the screen is actively lit.

Practical Applications for the LCD Module

This display is designed for scenarios where a dedicated, always-on system readout is more practical than a full graphical user interface. Its applications range from professional prototyping to everyday smart home management, offering a versatile monitoring solution.

Professional and Development Use

For developers and engineers, this LCD serves as a handy diagnostic tool. It can be used to monitor a headless Raspberry Pi server's performance without needing to SSH into the device from another computer. During software development or system testing, it can display log outputs, network status, or sensor readings in real-time. Its low power draw makes it suitable for battery-powered prototypes or field testing equipment where every milliampere counts, and the manual backlight switch extends battery life further during long-term data logging sessions.

Everyday Smart Home and DIY Use

In a smart home setup, this display can be embedded into a control panel to show system status, such as network connectivity, security camera feeds (as text alerts), or environmental sensor data like temperature and humidity. The physical sensation of flipping the backlight switch provides a tangible, immediate response, letting you quickly check information without the full brightness of a tablet screen. The clear, crisp text of the crystal display is easy to read at a glance from across a room, making it a functional and unobtrusive addition to a kitchen smart hub or workshop control station.

Versatility in Custom Projects

Beyond system monitoring, this display's GPIO interface makes it versatile for other custom electronics projects. It could be repurposed with an Arduino or other microcontroller to show custom data, such as a simple game scoreboard, a countdown timer, or a sensor readout for a weather station. Its compact size allows it to be fitted into retro gaming consoles, custom car dashboards, or portable music players as a status screen. The manual backlight control adds a layer of customisation, allowing the builder to decide when the display should be a focal point or remain discreet.

Key Benefits and Long-Term Value

Choosing this LCD module offers specific advantages related to convenience, control, and integration. Its design focuses on solving particular problems in compact computing and DIY electronics.

Value Through Dedicated Functionality

User Experience and SatisfactionReasons to Add This Display to Your Setup</h3 If your project involves a Raspberry Pi that benefits from constant status monitoring, this 1.6-inch LCD is a logical addition. Its measurable benefit is providing a dedicated visual output for system data, freeing up your main display and simplifying your setup. The manual backlight control offers a further measurable advantage in power management, allowing you to reduce consumption when full visibility isn't needed. For anyone building a compact smart home interface, a portable diagnostics tool, or simply wanting a neat way to keep an eye on their Pi, this module delivers specific functionality in a straightforward, integrable package.
