RFID Upgraded Arduino Starter Kit with Stepper Motor and Sensors for UNO R3 Learning

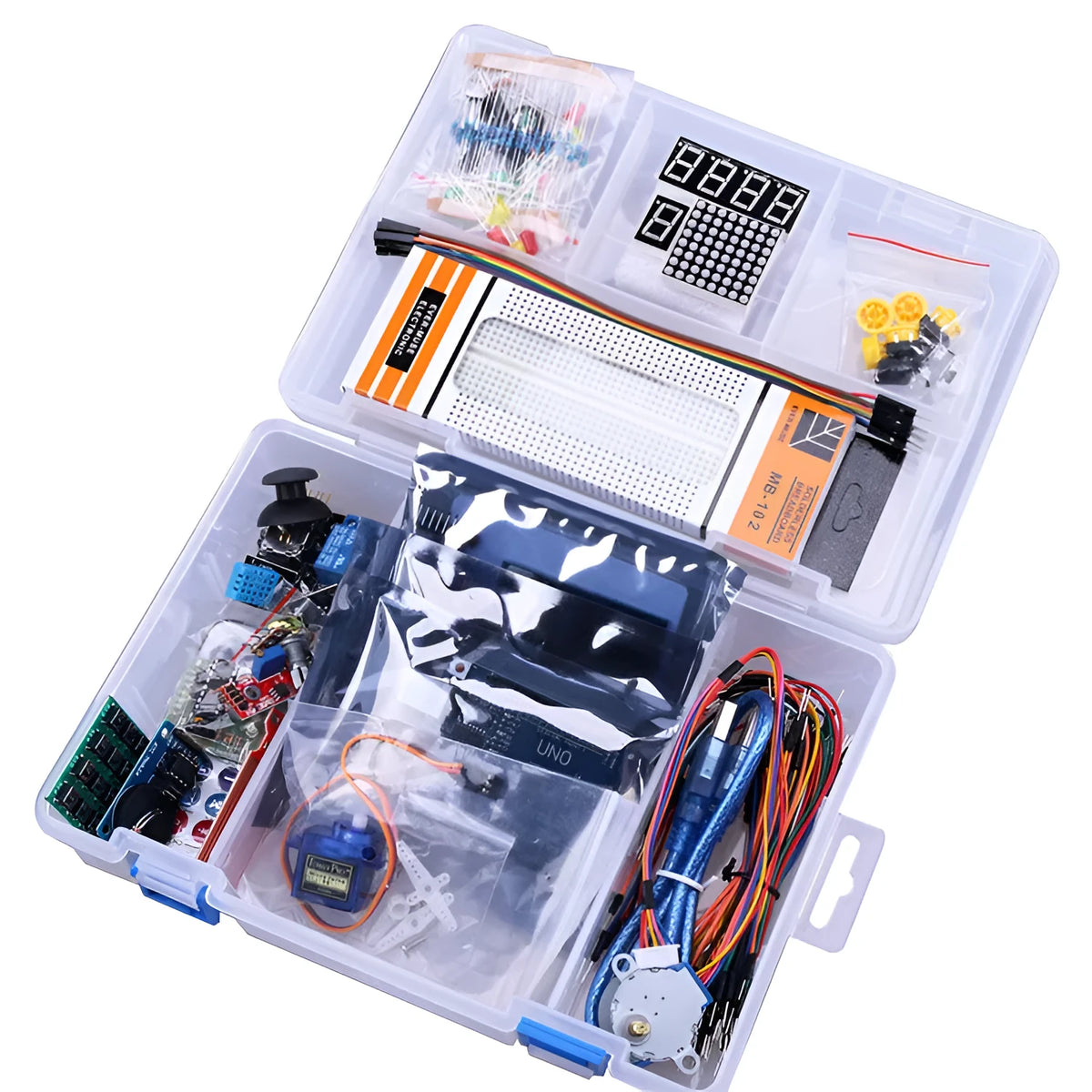

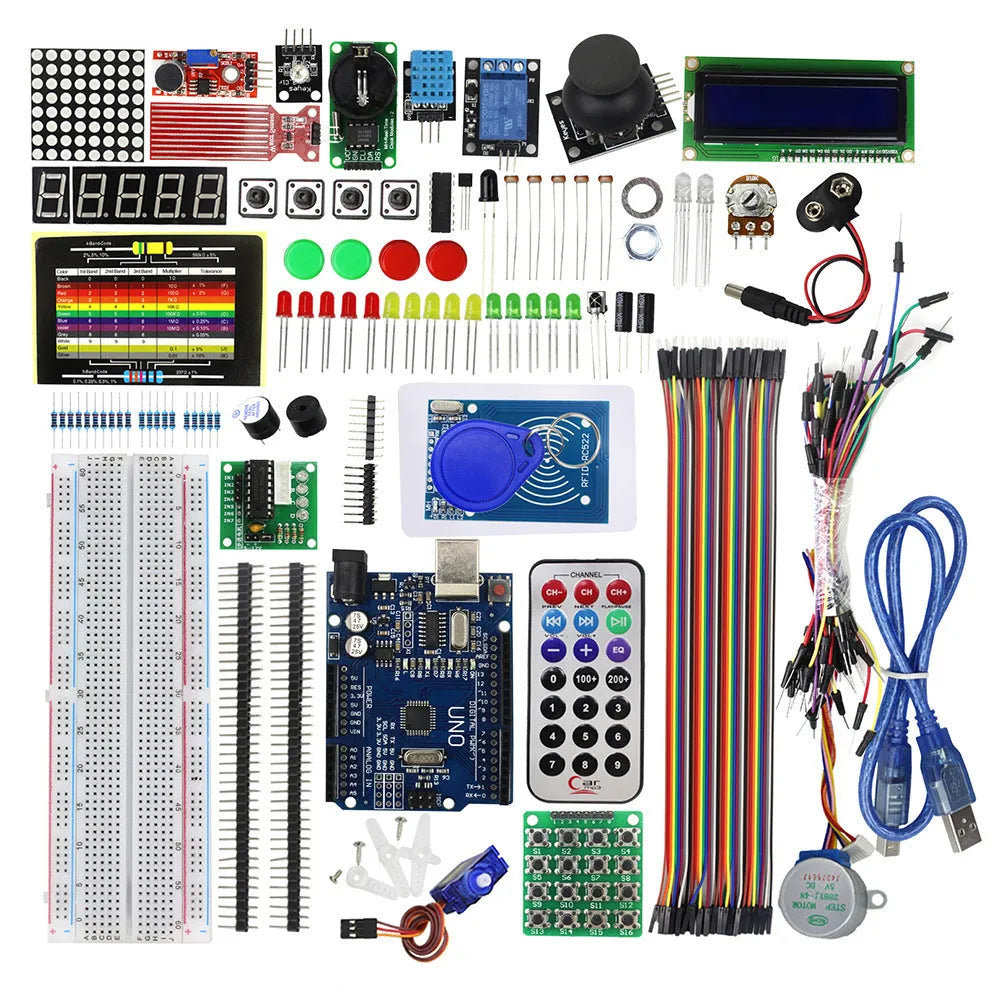

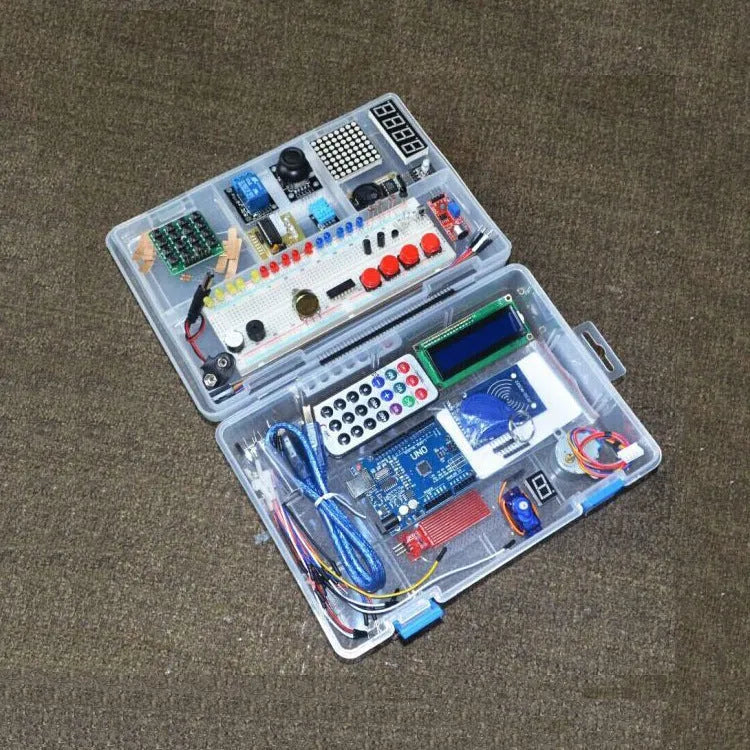

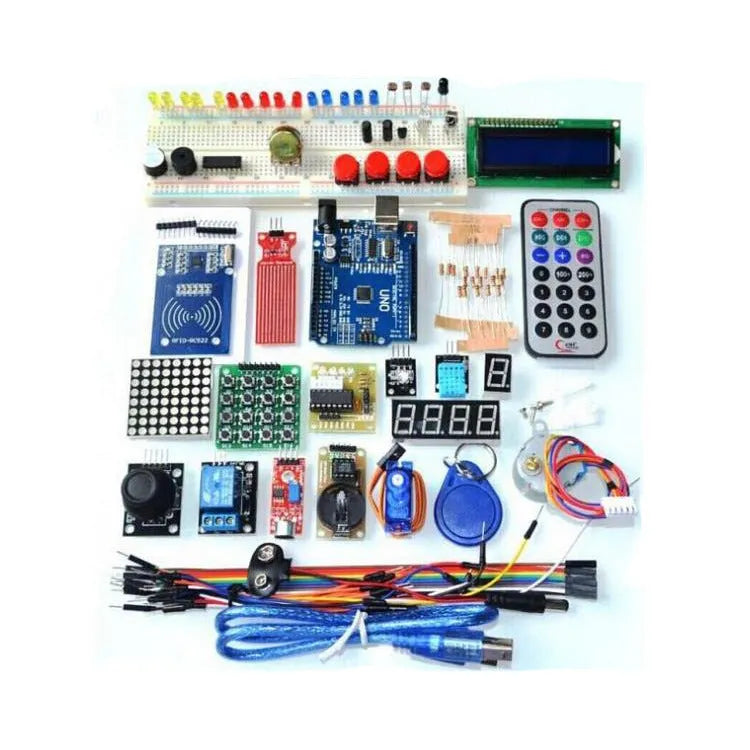

This comprehensive RFID Upgraded Arduino Starter Kit provides everything you need to begin learning electronics, programming, and sensor integration. It includes a stepper motor, servo, RFID module, and over 30 components designed for use with the UNO R3 board. Whether you are a student, hobbyist, or educator, this kit offers a practical way to build circuits and test code without sourcing parts individually. The kit uses a CH340 motherboard for reliable USB connectivity at 5V.

Features and Construction

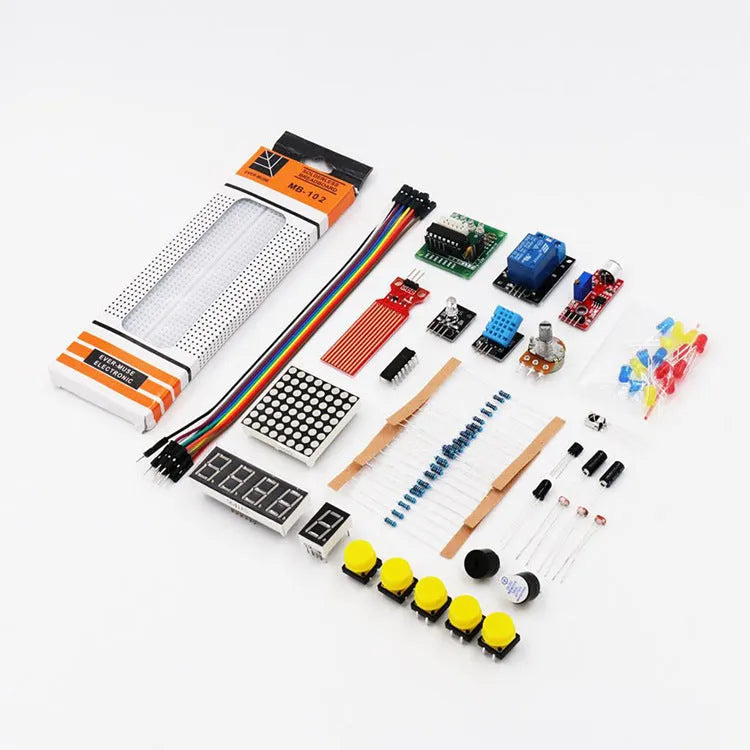

This learning kit includes a wide variety of modules and components covering input, output, display, and motor control. The CH340 UNO board provides a stable platform for programming and testing.

Motor and Driver Modules

The kit includes a stepper motor and dedicated stepper motor driver board for precise rotational control experiments. A 9g servo adds angular positioning capabilities for robotics projects. Both motors are suitable for learning motion control with Arduino.

Sensors and Input Modules

A full range of sensor modules is included: flame sensor, LM35 temperature sensor, ball switch, photoresistor, XY joystick module, water test module, infrared receiver, and sound module. These allow you to measure environmental conditions, detect motion, and read user inputs.

Display and Output Modules

The kit provides a 1602 LCD, 8x8 dot matrix module, 4-digit display tube, 1-digit display tube, LEDs, buzzer, and an RGB 3-color module. These outputs help you visualise sensor data and create visual or audio feedback in your projects.

Wireless and Identification

The kit includes an RFID module along with an RFID keychain and white card for contactless identification and data reading experiments. This allows you to build access control or inventory tracking projects using Arduino.

RFID Module and Cards

The RFID module operates at 13.56 MHz and includes two tags (keychain and card) for testing read/write functions. This is ideal for learning how RFID systems work in real-world applications.

Infrared Communication

An infrared receiver and remote control are included for wireless control projects. You can learn to decode IR signals and control devices from a distance.

Practical Components and Connectivity

The kit includes essential passive components and connectivity items to build circuits on a breadboard.

Resistors, LEDs, and Breadboard

One pack of resistors and five LED lights allow you to create basic circuits and learn about current limiting. The breadboard and jumper cables enable fast prototyping without soldering.

USB Power and Programming

The kit includes a USB cable for power and programming at 5V. A 9V battery snap is also provided for portable power options. The CH340 chip ensures compatibility with most computers.

Additional Modules

Completing the set are a relay module for switching high-current loads, a clock module for time-based projects, a 4x4 keyboard matrix for user input, and a 74HC595 shift register for expanding digital outputs.
