TB6560 Stepper Motor Driver Board: 3.5A Peak Output for CNC and Automation

This TB6560 stepper motor driver module is engineered for motion control applications requiring reliability and precision. Built around the Toshiba TB6560AHQ integrated circuit, it is a fully tested solution proven in equipment such as CNC engraving machines and pick-and-place systems. It delivers a robust performance with a rated output of ±3A and a peak current of 3.5A, making it compatible with a wide range of two-phase, four-phase, four-wire, and six-wire stepper motors, specifically those within the common 42 and 57 frame sizes. Its broad DC input voltage range of 10V to 35V offers flexibility in power supply selection, though a stable DC24V switching supply is advised for best results. Crucially, users must be aware that this driver lacks external protection circuitry, meaning meticulous attention to wiring and power is essential to prevent damage.

Features and Construction

This compact driver board integrates several key components designed for effective motor control and system integration.

Material and Build

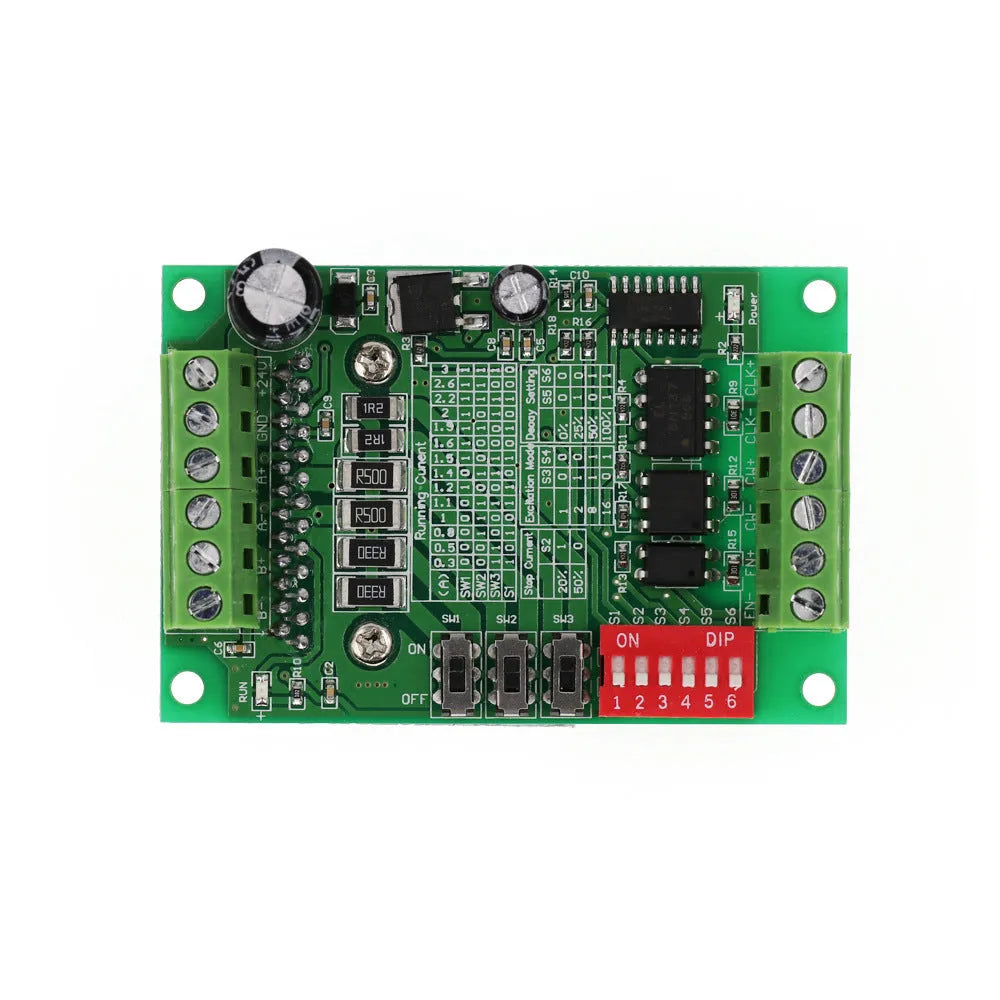

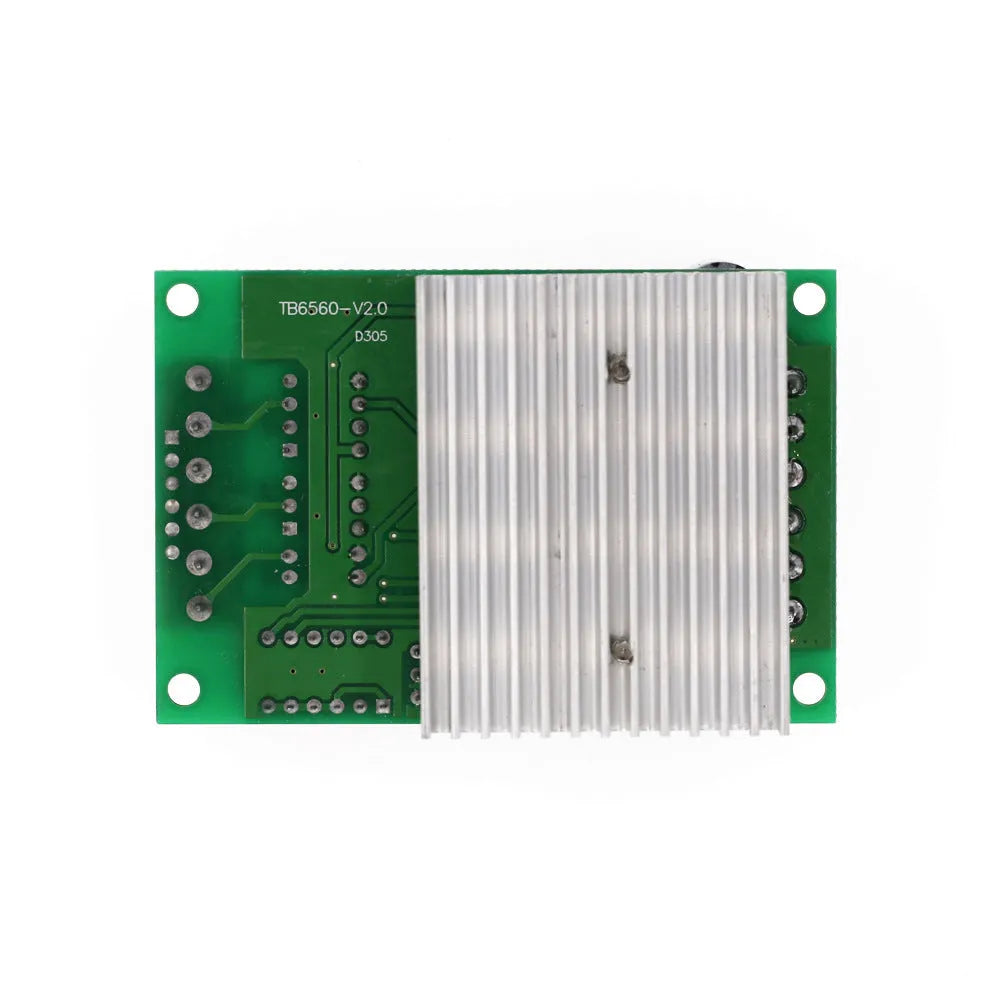

The core of the driver is the Toshiba TB6560AHQ chip, a new original component that provides the main drive logic and includes internal safeguards such as low-voltage shutdown, over-temperature shutdown, and over-current protection. Signal isolation is handled by a 6N137 high-speed optocoupler, which helps maintain signal integrity and can contribute to reliable high-speed operation by helping to prevent step loss. The board itself is a standard printed circuit board populated with the necessary resistors, capacitors, and terminal blocks. A notable construction feature mentioned for similar products is the use of a thick, dense fin heatsink, which aids in dissipating heat from the driver chip during operation.

Size and Practical Fit

With dimensions of 50mm in width, 75mm in length, and 35mm in height, this driver module has a compact footprint suitable for integration into various machinery enclosures and control boxes. Its size makes it a practical choice for retrofitting existing equipment or designing new systems where space is a consideration. The physical layout includes clearly labelled terminals for power, motor connections, and control signals, facilitating straightforward installation.

Uses and Placement

This driver is tailored for applications where precise control of stepper motor movement is critical.

Event or Professional Use

In professional and industrial settings, this driver is applicable for CNC engraving machines, where it controls the precise movements of the cutting tool or laser head. It is also suited for pick-and-place machines used in electronics assembly, automating the accurate positioning of components. The support for high microstepping (up to 16 subdivisions) allows for smoother motor rotation and finer positional control, which is beneficial in these precision-demanding tasks.

Everyday Home Use

For hobbyists, makers, and DIY enthusiasts, this driver board is a suitable component for building custom CNC routers, 3D printers, or automated plotting machines. Its ability to drive common NEMA 17 (42-size) and NEMA 23 (57-size) stepper motors makes it a versatile choice for a wide array of personal fabrication and automation projects. The detailed subdivision settings allow users to fine-tune the balance between motor torque and step resolution for their specific application.

Benefits and Buying Value

The driver offers specific advantages grounded in its design specifications and intended use cases.

Reuse and Low Maintenance

The driver's construction, particularly the inclusion of a capable heatsink as noted in comparable products, is aimed at promoting thermal stability during extended use. The automatic half-current function reduces the power supplied to the motor when it is stationary, lowering overall energy consumption and heat generation. This can contribute to the module's longevity in repetitive or long-duration operational cycles. However, its longevity is directly tied to correct installation and use, as the absence of external protection circuits places the onus on the user to avoid electrical faults.

Why Choose This Product

This TB6560 driver presents a focused solution for those needing a driver for specific motor sizes (42, 57) and current ratings (under 3A). Its value lies in the integration of the dedicated TB6560AHQ motor driver IC with its built-in protections, the inclusion of high-speed optocoupler isolation, and the provision of extensive microstepping options. It is a module designed for users who understand their system requirements and can implement the necessary care during setup. It is not a generic, all-purpose driver and is explicitly unsuitable for stepper motors with a rating over 3A.
