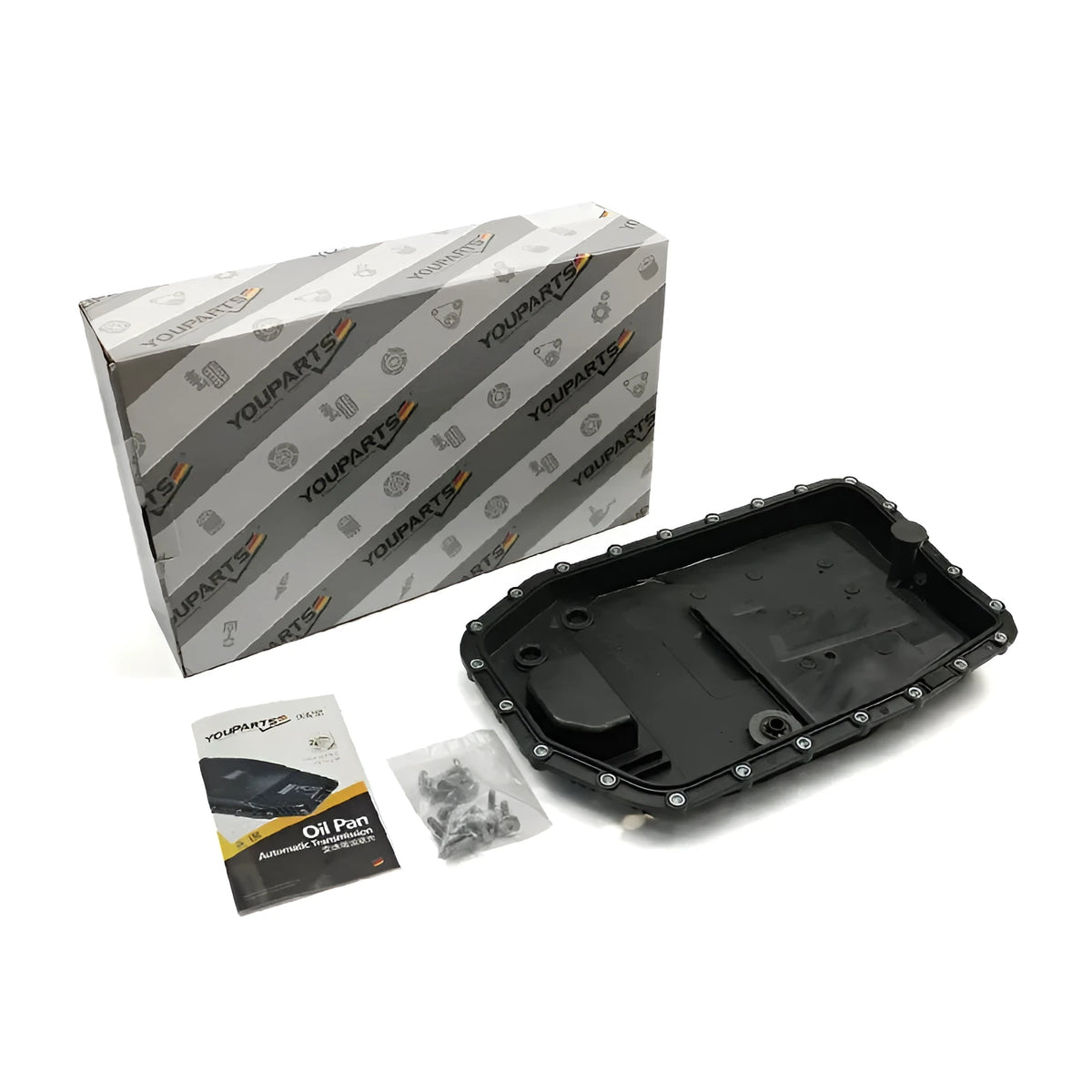

BMW Transmission Oil Pan 24117571217 for 6HP19 6HP21 6HP26 6HP28 Gearboxes

Maintaining the automatic transmission in your BMW is critical for long-term drivability and performance. A worn or damaged transmission oil pan can lead to fluid leaks, contamination, and eventual gearbox failure. The BMW transmission oil pan 24117571217 is a direct replacement component designed for a range of 6-speed automatic gearboxes, including the 6HP19, 6HP21, 6HP26, and 6HP28. It is a complete assembly that includes an integrated filter element, making it a straightforward solution for routine transmission service or repair. This oil pan is manufactured to match OEM specifications, ensuring a precise fit on many popular BMW models from the early 2000s to later production years.

Features and Construction

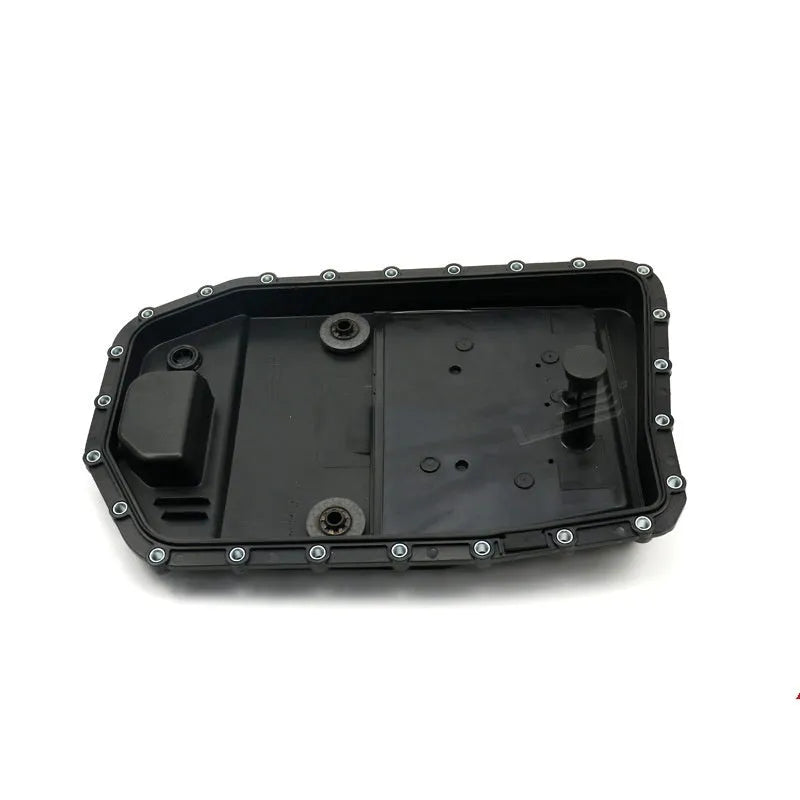

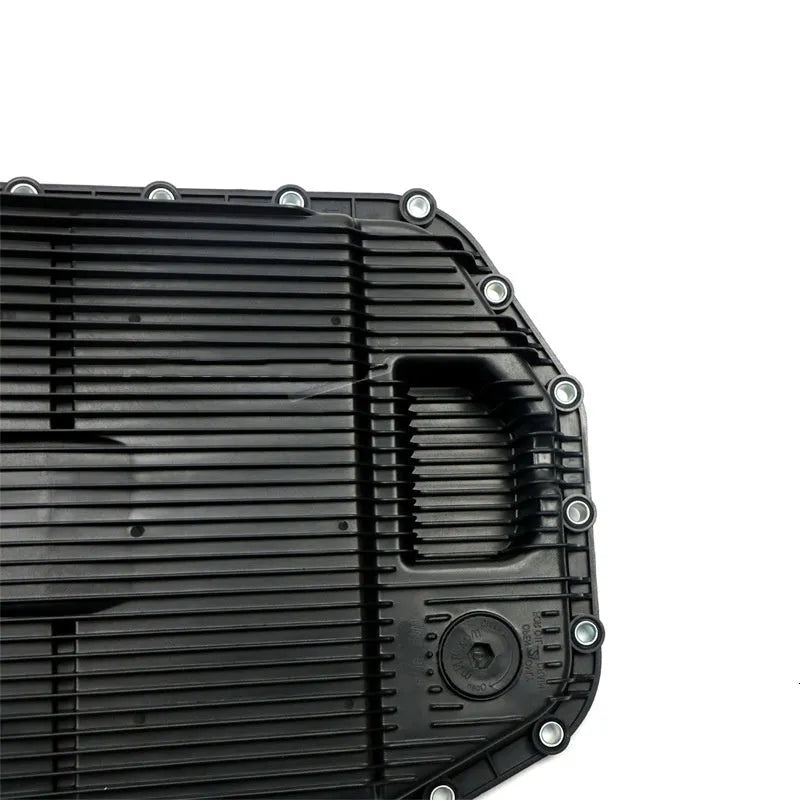

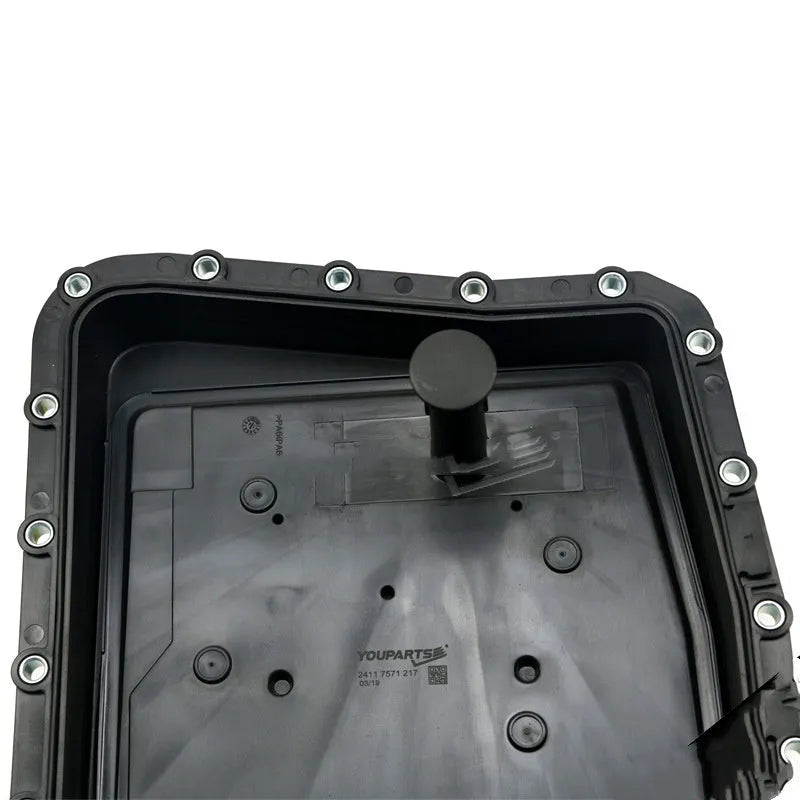

This transmission oil pan is built as a single unit, combining the pan body with the internal filter. The design simplifies the replacement process by reducing the number of separate components required. It is intended for front placement on the vehicle, providing direct access during fluid changes.

Material and Build

The pan is constructed from durable metal, typically steel or aluminium, chosen for its ability to withstand the heat and pressure of automatic transmission fluid. The integrated filter is made from a fine mesh material to trap debris and particles that can accumulate over time, helping to maintain fluid cleanliness and protect internal gearbox components such as valves and clutches.

Size and Practical Fit

The oil pan measures approximately 50 cm in length, 30 cm in width, and 5 cm in height, fitting the standard mounting points for the 6HP series gearboxes. It uses the original bolt pattern and sealing surface, so no modifications are required during installation. The gasket and bolts are typically replaced at the same time to ensure a leak-free seal, though these are not included in the package.

Uses and Placement

This transmission oil pan is intended for use on BMW vehicles equipped with ZF 6HP automatic transmissions. It serves both as a replacement for a leaking or damaged pan and as a scheduled maintenance item when changing the transmission fluid. The integrated filter makes it a popular choice for service intervals where the fluid is drained and replaced.

Event or Professional Use

Garages and transmission specialists often use this pan during gearbox rebuilds or fluid service campaigns. Its direct replacement design reduces labour time compared to older designs that required a separate filter. Professional installers appreciate the accurate fit and OEM-level performance, which helps avoid comebacks due to leaks or poor filtration.

Everyday Home Use

Experienced DIY mechanics can also replace the oil pan themselves using basic hand tools and a jack. The job requires draining the old fluid, unbolting the old pan, cleaning the mating surface, and fitting the new pan with new bolts and gasket. This is a manageable task for those with some mechanical experience and access to a workshop manual for their specific BMW model.

Benefits and Buying Value

Choosing the correct transmission oil pan for your BMW ensures that the gearbox receives proper fluid containment and filtration. Using an aftermarket pan that does not match OEM specifications can lead to alignment issues, leaks, or poor filter coverage, potentially shortening transmission life.

Reuse and Low Maintenance

The pan itself is a one-time-use component that should be replaced at every transmission fluid change. The integrated filter means you do not need to purchase a separate filter element. Regular replacement of the pan and fluid helps keep the gearbox running smoothly and avoids expensive repairs.

Why Choose This Product

This oil pan is specifically listed for the 6HP19, 6HP21, 6HP26, and 6HP28 transmissions found in a wide range of BMW models, including the 1 Series 120i, 3 Series 320i/325i/330i, 6 Series 630i, 7 Series 730Li/740Li, X1, X5, X6, and Z4. The part number 24117571217 matches the original component, making it a reliable choice for restoration or routine maintenance. With its direct replacement fitment and included filter, it offers a straightforward solution for keeping your BMW's automatic transmission in good working order.
